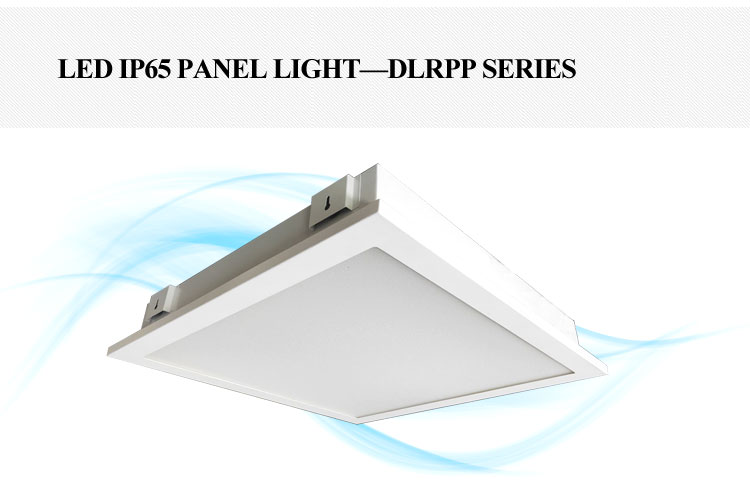

IP65 clean room back-lit commercial 50W 120*60 square LED recessed panel ceiling light OEM/ODM/STO for hospital office factory

IP65 clean room back-lit commercial 60W 120*60 square LED recessed panel ceiling light OEM/ODM/STO for hospital office factory Product Description
Technical   data:

Model:DLRPP1260-50-IP65 Fixture Demension: 1195x595x100 //1200x600x100 Output power: 50W Luminous Flux: 5250lm Light efficiency: 105lm/W LED: led strip   Samsung led 2835   Driver:Chinese led driver

CRI: >80 CCT: 4000k-6000k Rated input:220-240V Beam Angle: 160° Certification: CE/RoHS    Warranty: 50000 hours Dimmable or Dali driver is available on request

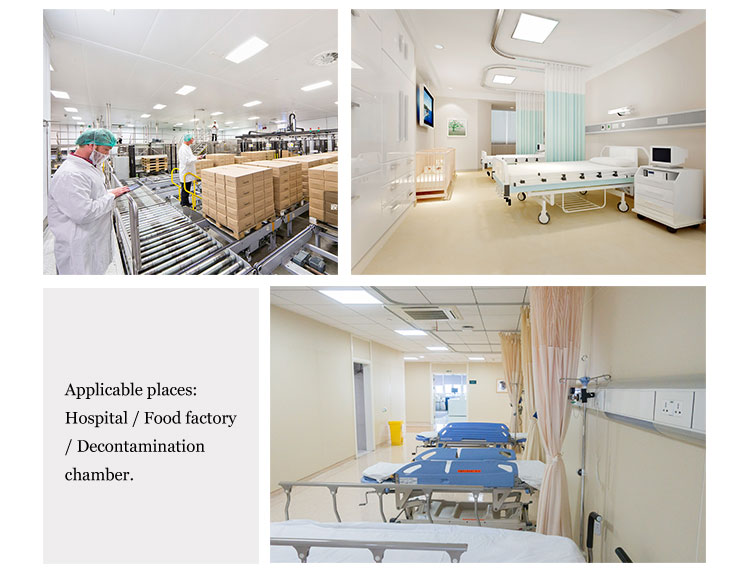

    Housing for LED IP65 panel light: Light and frame is made of high quality iron, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating.   Diffuser for LED IP65 panel light: Polycarbonate, Acrylic LED Diffuser and safety glass together Specially for LED.   LED type for LED IP65 panel light: It uses LED Epistar,Samsung SMD 2835.   Electrical for LED IP65 panel light: Lifud or Famous logo standard driver or Dali /Dimmable driver.   Mounting for LED IP65 panel light: Recessed mounting.   Main applications: Open office space hospital , meeting rooms, retail stores,hotel     High efficiency save energy: The light from the LED Light is released through the diffuser directly, which isn't absorbed and reflected from Other media. So the utilization of the light is relatively high, and the overall luminious efficiency of light is quite high. Energy saving, saving 65% than the traditional lights at the same brightness.   Save cost: The components of direct light panel is simpler than ordinary panel ,it will save the guide-plate and overall cost will be more effective.   Luminous uniformity: Direct light panel is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light, because the light SMD are arranged in a matrix,  the reasonable distance between the LED SMD and the PC diffuser, so that the light doesn't have a dark zone, and it improves the brightness uniformity when it's been lighting up.   Long life: Direct light panel is compared with the side light panel, it has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure its 50000hrs long lifespan.   Specifications:

Model	Power	Leds	Luminous Flux (lm)	Efficiency  (lm/w)	CRI	CCT
DLRPP6060-36-IP65	36	2835	2500	105	>80	4000K-6000K
DLRPP6060-40-IP65	40	2835	3750	105	>80	4000K-6000K
DLRPP1230-36-IP65	36	2835	5000	105	>80	4000K-6000K
DLRPP1230-40-IP65	40	2835	3250	105	>80	4000K-6000K
DLRPP1260-50-IP65	50	2835	7500	105	>80	4000K-6000K
DLRPP1260-60-IP65	60	2835	10000	105	>80	4000K-6000K

  Packing details:

Model	Dimension (L*W*H)	Packing size	Qty/ctn
DLRPP6060-36-IP65	595x595x100	615x615x210	2
DLRPP6060-40-IP65	595x595x100	615x615x210	2
DLRPP1230-36-IP65	1195x295x100	1215x315x210	2
DLRPP1230-40-IP65	1195x295x100	1215x315x210	2
DLRPP1260-50-IP65	1195x595x100	1215x615x110	1
DLRPP1260-60-IP65	1195x595x100	1215x615x110	1

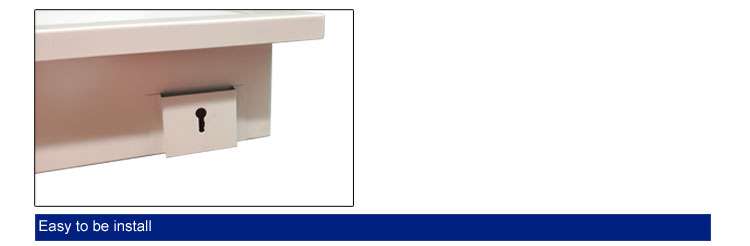

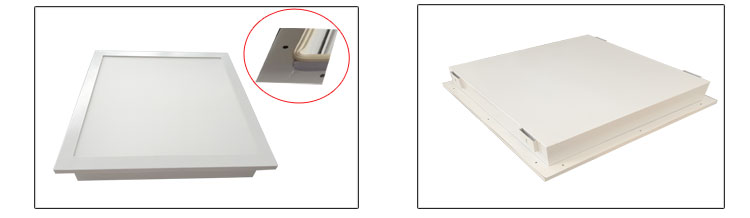

Product Details          It is with Acrylic cover, UGR can be lower than 19                    Overall design for lP65,steel plate with          and easy to water  and dust proof.                                            powder coating process,intemal enough                                                                                                            space to solve the problem of heat dissi-                                                                                                            pation LED. It has quake-proof and EPDM.                Speical and safe designs can be fit for all kinds of ceiling.       About Us   It has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection.Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit. Certifications FAQ Q1: Can I have a sample order for LED light? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.   Q2: What about the lead time? A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.   Q3: Do you have any MOQ limit for LED light order? A: 1pc for sample order is available.   Q4: How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.   Q5: How to place an order for LED light? A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.   Q6: Are you a factory? A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters.   Q7: Do you offer guarantee for the products? A: Yes, we offer 3-5 years warranty to our products.

Contact us if you need more details on Square Led Ceiling Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 120*60 Led Light、Hospital Led Light. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : IP65 panel light > DLRPP-IP65
