Fixed led downlight waterproof
|Min. Order:||1 Piece/Pieces|
|Packaging:||White/grey box for inner package, carton for outer package. Need to collect extra fee for customized color box.|
|Productivity:||100,000pcs per month|
|Brand:||Vertex/ OEM available.|
|Place of Origin:||P.R.C|
|Supply Ability:||100,000pcs per month|
|Certificate:||CE, ROHS, SAA|
Model No.: F6085-AC
Fixed LED Downlight
A fixed IP65 rated version of the luxury range of LED Fixed led downlight from Integral. These fully integrated downlights contain everything you need including an LED Light source and LED driver.
As a manufacturer, Vertex is professional in design and producing Anti-glare downlight, Trimless downlight, Low profile downlight, Gu10 downlight, Cabinet downlight etc.
Description:Recessed IP20/65(for bathroom), round diameter Ø84mm, Ø69mm cut out, 8W IP65 Fixed led downlight
Model No.: F6085-AC
Brand: Vertex/ OEM available.
Production ability: 100,000pcs per month
Payment terms: 30% as deposit and balance should be paid before shipment.
Certificate: CE, RoHS
Package: White/grey box for inner package, carton for outer package. Need to collect extra fee for customized color box.
- IP65 design for bathroom;

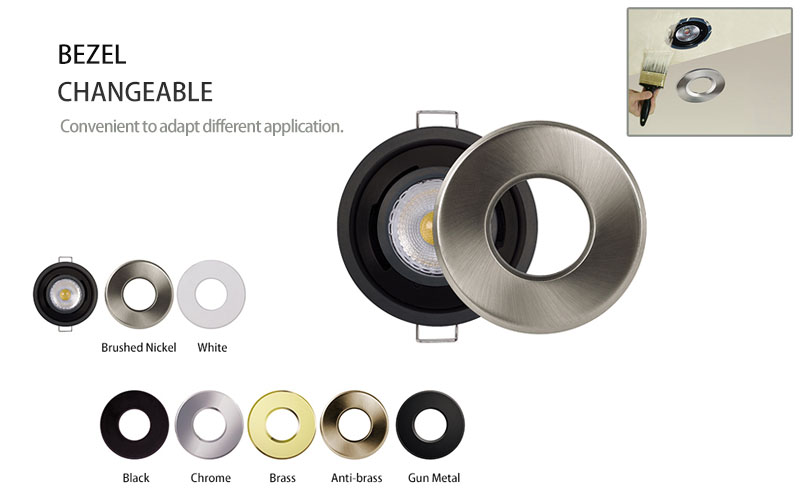

- Different color finishes available for changing;
- Smooth triac dimming, 0-100% dimmable ;
- Meeting 90 minutes fire rated requirements: BS476
- 20° and 40° beam angle for choosing.
- Vertex AC technology, flicker free, no niose.
Detailed specification of waterproof downlights:
|CCT|| 2700K/3000K/4000K/ |
|CRI||Ra>80 (>90 available)|
|Beam angel||40°||Luminous flux||650lm|
|Fire rated||30, 60, 90 minutes||Luminous efficiency||81.13 lm/W|
|Installation way||Recessed||Material||Aluminum housing|
|Lighting resource||COB AC led||Power||8W|
|Bezel color||White, Brush Nickel,Black||Protection Classes||Class II|
|Brand of led||Chinese brand led.||Brand of led convert||Vertex|
|Voltage/Frequency||AC 220-240V 50/ 60Hz AC120V(+-10%) 50/ 60Hz||Insulation Covered||No|
|Dimmable||Dimmable with leading OR trailing edge||Power Supply||255V DC 25mA|
|Driver||External Driver||Power Factor||>0.8|
|Lifespan||Over 40,000 hours||Warranty||5 years warranty|
|With fast connector||With fast connector in connection box||Other||Fixed Version, flicker free, no noise.|
Applications:F6085(V6085) 8 watt fixed led downlight can make a wouderful lighting ambient in rooms, kitchen, office, bathroom etc.
Vertex Quality Control System:
Question: How to choose the right Color Temperature?Answer: Color rendering and appearance are critical considerations in light source selections.Correlated Color Temperature(CCT)relates to the color of light produced by a light source,and uses the Kelvin temperature measurement scale.
Colorrendering index(CRI)is a measure of how accurately an artificial light source displays colors.The higher the CRI(80 and above).the better the artificial light source is at rendering colors accurately.
Warm White(2600K-3200K)is the warmest option that most closely approximates a standard halogen bulb.It is most often used in areas like living rooms.
Bright White(3200K-4500K)is a whiter light than soft white and is most often selected for kitchens and bathrooms or work spaces.
Daylight(4500K-6500K)is recommended for reading areas or for use in craft rooms and is a more bluish white that mos closely approximates an outdoor overcast sky.
Question: How many lights am I going to need?
Answer: This question has no easy answer,as opinions on this subject vary greatly.However,a good rule of thmb is to take the height of the ceiling and divide it in half.This is the distance that each light should be from one another.The total number of lights will also be affected by the type and wattage of bulb being used.Spot lights with narrow beams will produce pockets or pools of light,while flood type bulbs will produce broader amounts of light.
Question: Are LEDs bad for your eyes?
Answer: Like any light source,if you stare too long it will cause some discomfort and or imaging.However,if LED products are used the same way traditional lighting is used,they will not damage your eyes.
Question: Why Choose Vertex Lighting?
Answer: With over 22 years in the lighting industry,Vertex Lighting is concentrated on researching and producing, innovative lighting products,supplying best solutions for electricians,to save time and protect their safety,and gives 5 years warranty for most of our products.
Vertex Lighting and Electrical Co., Ltd.
- Company Name: Vertex Lighting and Electrical Co., Ltd.
- Representative: Laurence Wu
- Product/Service: LED Downlight , LED Spotlight , Ceiling Light , Cabinet Downlight , Indoor Lighting , Smart Light
- Capital (Million US $): 14,510,000.00RMB
- Year Established: 2000
- Total Annual Sales Volume (Million US $): US$10 Million - US$50 Million
- Export Percentage: 91% - 100%
- Total Annual Purchase Volume (Million US $): US$5 Million - US$10 Million
- No. of Production Lines: 6
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: 11 -20 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 10,000-30,000 square meters
- Factory Location: No.702, Blk. 15th, Shunde Wanyang Zhongchuang Park, Xiantang Vil, 1st West Rd, Longjiang Town, Shunde Dist, Foshan City, Guangdong Prov, China
- Contact Person: Mr. Alan Zhang
- Tel: +86-757-82525260
