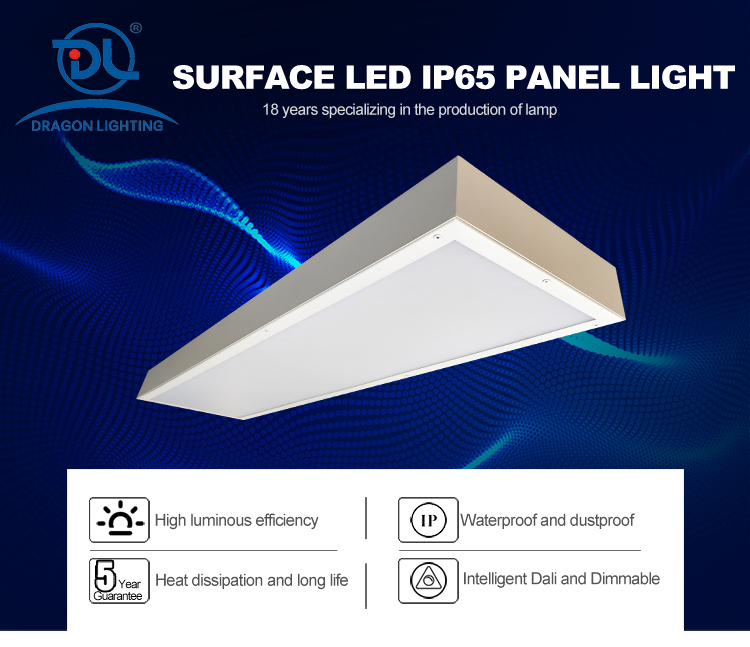

105LM LED IP65 SQUARE SURFACE PANEL LIGHT 1200X300 40W HOSPITAL LABOETORY DEDICATED
Product Description
Technical data:
Model: DLSP1230-40 Fixture Demension: 1200x300x80mm Output power: 40W Luminous Flux: 4200lm Light efficiency: 105lm/W LED: LED SMD 2835 Driver:Chinese LED driver | CRI: >80 CCT: 3000k-6000k Rated input: 220-240V Beam Angle: 160° Certification: CE/ROHS/SAA Warranty: 50000 hours Grade:IP65 Dimmable or Dali driver is available on request |

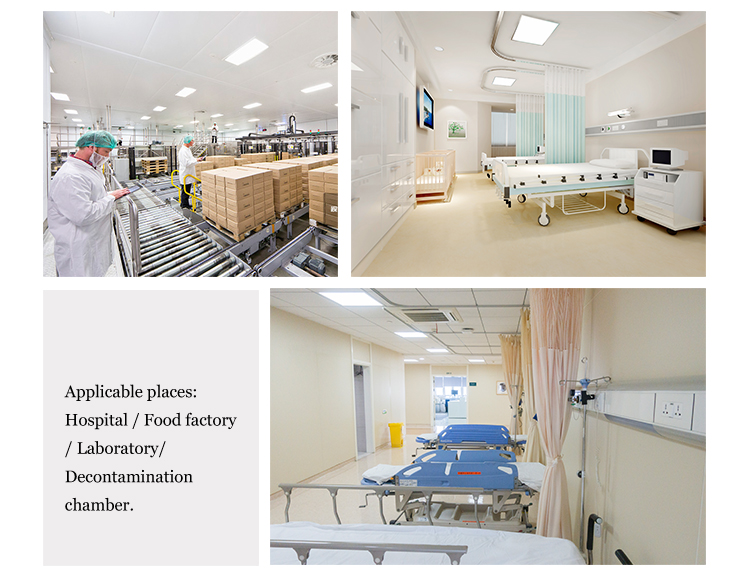

Housing for LED IP65 panel light: Light and frame is made of high quality iron, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating. Diffuser for LED IP65 Panel Light : Polycarbonate Acrylic LED frosted diffuser for LED . LED type for LED IP65 Panel Light : It uses LED SMD 2835 Electrical for LED IP65 Panel Light : Lifud standard driver or Dimmable driver for LED line Mounting for LED IP65 Panel Light : Surface mounting. Main applications: hospital, labortory, pharmaceutical factory, food factory ,decontamination chamber High efficiency saves energy:
The light from the LED Light is released through the diffuser directly, which isn't absorbed and reflected from Other
media. So the utilization of the light is relatively high, and the overall luminious efficiency of light is quite high. Energy
saving, it saves 65% than the traditional lights at the same brightness
Save cost:
The components of direct light panel is simpler than ordinary panel, it will save the guide-plate and overall cost will be
more effective.
Luminous uniformity:
Direct light panel is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion
and the height of the light fixtures to achieve the ideal blend of light. Because the light SMD is arranged in a matrix,
the reasonable distance between the LED SMD and the PC diffuser, so that the light doesn't have a dark zone, and it
improves the brightness uniformity when it's been lighted up
Long life:
When direct light panel is compared with the side light panel, it has a certain distance between the LED SMD and the
diffuser. The heat dissipation provides enough space to ensure its 50000hrs long lifespan. Specifications:
Model | Power | Leds | Luminous Flux(lm) | Efficiency (lm/w) | CRI | CCT |
36 | 2835 | 3780 | 105 | >80 | 3000K-6000K | |
40 | 2835 | 4200 | 105 | >80 | 3000K-6000K | |
36 | 2835 | 3780 | 105 | >80 | 3000K-6000K | |
40 | 2835 | 4200 | 105 | >80 | 3000K-6000K | |
50 | 2835 | 5250 | 105 | >80 | 3000K-6000K | |
60 | 2835 | 6300 | 105 | >80 | 3000K-6000K |
Model | Dimension(L*W*H)(mm) | Packing size (mm) | Qty/ctn |
600x600x80 | 615x615*180 | 2 | |
600x600x80 | 615x615*180 | 2 | |
1200x300x80 | 1215x315*180 | 2 | |
1200x300x80 | 1215x315*180 | 2 | |
DLSP1260-50 | 1200x600x80 | 1215x615*180 | 1 |
DLSP1260-60 | 1200x600x80 | 1215x615*180 | 1 |
Product Categories : IP65 panel light > IP65 panel light
