Home > Products > LED linear high bay light > High Lumens LED Linear High Bay 150Watts

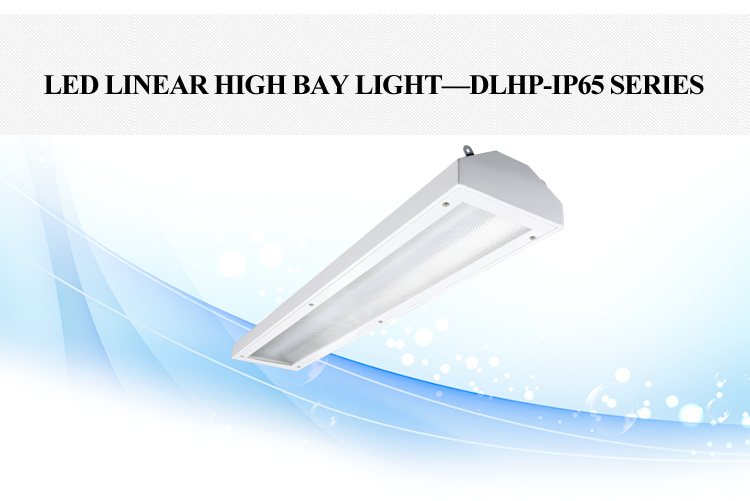

High Lumens LED Linear High Bay 150Watts

Product Description

No Flicker 160W LED High Bay Light DLHE  SUSPENDED Product Description High Lumens LED Linear High Bay 150Watts High Lumens LED Linear High Bay 150Watts
High Lumens LED Linear High Bay 150Watts Technical       data:

Model: DLHP-150W

Fixture Demension: 1165*300*100mm

Output power: 150W

Luminous Flux:17600lm

Light efficiency: 130lm/W

LED: LED SMD 2835

Driver:ARCATA /X-POWER driver

CRI: >80

CCT: 4000k-6000k

Rated input: 220-240V

Beam Angle: 160°

Certification: CE/ROHS

Warranty: 50000 hours

Dimmable or Dali driver is available on request

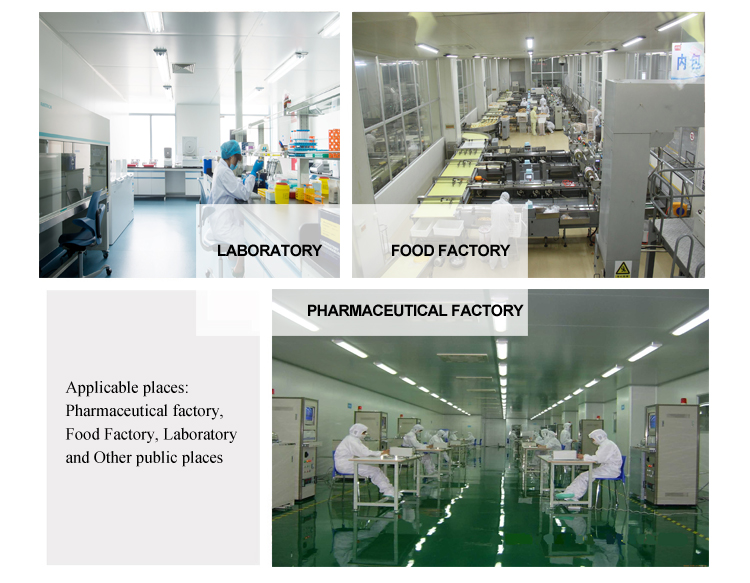

  High Lumens LED Linear High Bay 150Watts   Housing for LED linear high bay light: High quality steel housing, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating.   Diffuser for LED   linear high bay lght: Polycarbonate, Acrylic LED Diffuser Specially for LED.   LED type for LED   linear high bay lght: It use Led SMD 2835.   Electrical for LED linear high bay lght: Arcata ,X-power standard driver or dimmable driver for LED line   Mounting for LED  linear high bay lght: Suspended mounting by chain or stainless steel cable.   Main applications:   Garege / Warehouse / Gym / Manufacturing place / Super-market / Hyper-market / Parking area / Other public places   High Lumens LED Linear High Bay 150Watts   High efficiency saves energy: High performance LED lighting 14300lms at 5000k daylight using 110W.Energy saving and lower maintenance, energy-efficient LED technology is 30% more efficient than T5HO flourescent to help save money.    Luminous uniformity: Direct light panel is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light, because the light SMD are arranged in a matrix, so the reasonable distance between the LED SMD and the PC diffuser, so that the light doesn't have a dark zone, and it improves the brightness uniformity when it's lighting up.   Intelligent control: It can be Chinese dimmable driver to meet for the different places.    Long life: The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.   Specifications:

Model

Power

Leds

Luminous Flux(lm)

Efficiency

(lm/w)

CRI

CCT

                 DLHP-80-IP65

80

2835

8800

110

>80

4000K-6000K

DLHP-160-IP65

160

2835

17600

110

>80

 4000K-6000K

DLHP-200-IP65

200 2835 28000 140  >80  4000K-6000K

DLHP-240-IP65

300 2835 33600 140  >80  4000K-6000K
  Packing details:

Model

Dimension

(L*W*H)(mm)

Packing size

(mm)

Qty/ctn

DLHP-80-IP65

1165*200*100

1180*210*210

2

DLHP-160-IP65

1165*300*100

1180*310*210

2

DLHP-200-IP65

1165*300*100

1185*310*210

2

DLHP-300-IP65

1165*400*100

1185*410*210

2

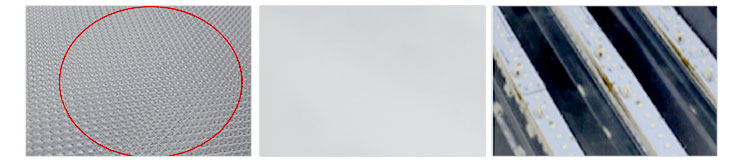

Product Details High Lumens LED Linear High Bay 150Watts   1.Overall design for IP65, steel plate with powder coating process,intemal enough space for heat dissipation to sovle the problem of large  power LED linear high bay  2.The light is easy to be installed by stainless steel wire or cable.   High Lumens LED Linear High Bay 150Watts                  1.Open rear cover design,it is easy to install the wiring and maintenance.2.It uses LIFUD ,it can gives the high bay long life           High Lumens LED Linear High Bay 150Watts           Prismer, frosted Acrylic and clean LED diffuser for the client's choice. High Lumens LED Linear High Bay 150Watts     Company Information High Lumens LED Linear High Bay 150WattsHigh Lumens LED Linear High Bay 150WattsIt has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection.Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit. Why Choose Us High Lumens LED Linear High Bay 150WattsHigh Lumens LED Linear High Bay 150Watts  FAQ High Lumens LED Linear High Bay 150Watts   Q1: Can I have a sample order for LED Light? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.   Q2: What about the lead time? A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.   Q3: Do you have any MOQ limit for LED light order? A: 1pc for sample order is available.   Q4: How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.   Q5: How to place an order for LED light? A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.   Q6: Are you a factory? A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters. Q7: Do you offer guarantee for the products? A: Yes, we offer 3-5 years warranty to our products.

Contact us if you need more details on Led High Bay. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Supermarket LED Linear Light、Warehouse Linear Light. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : LED linear high bay light > LED linear high bay light
