Home > Products > LED troffer light > 50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL

50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL

Product Description

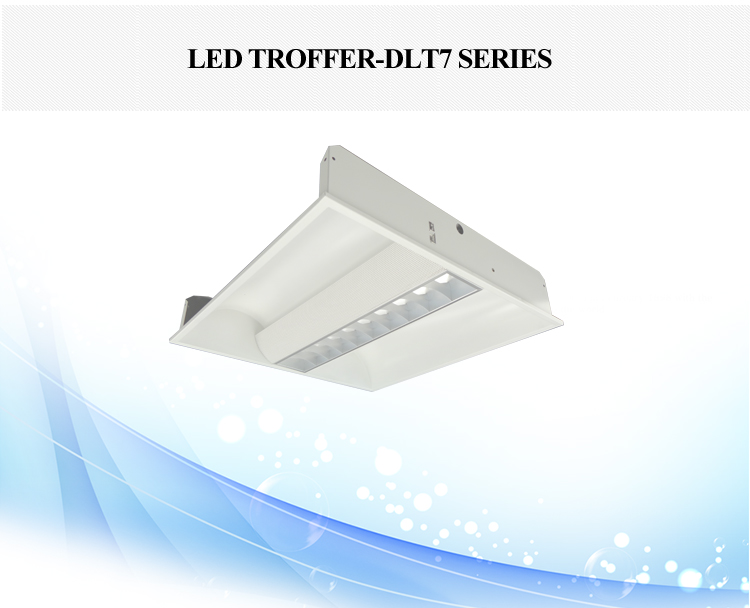

No Flicker 50W LED TROFFER  DLT7 SERIES   Product Description 50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL 50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL
50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL Technical       data:

Model: DLT7 -30

Fixture Demension: 1195*595*100mm

Output power: 50W

Luminous Flux:4500lm

Light efficiency: 90lm/W

LED: LED SMD 2835

Driver: LED/0-10V  driver,dim driver,Dali drver

CRI: >80

CCT: 4000k-6000k

Rated input: 220-240V

Beam Angle: 160°

Certification: CE/ROHS

Warranty: 50000 hours

Dimmable or Dali driver is available on request

  50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL   Housing for LED  troffer: Light and frame is made of high quality iron, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white/black powder coating.   Diffuser for LED  troffer: Para-curve indirect reflection design with pertorated steel sheel and the reflector is glare free, soft light ,eye-protection,   LED type for LED  troffer: It uses LED  Sumsung / Epistar / Hongli   SMD 2835.   Electrical for LED troffer: Lifud standard driver of famous driver for LED line.   Mounting for LED troffer: Recessed mounting.   Main applications:   1.Hotel / shopping mall  / institution building 2.Conference / Meeting room / Factory /  Office. 3.School / College /University   50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL   High efficiency saves energy: The light from the LED Light is released through the diffuser directly, which isn't absorbed and reflected from Other media. So the utilization of the light is relatively high, and the overall luminious efficiency of light is quite high. Energy saving, saving 65% than the traditional lights at the same brightness.     Luminous uniformity: It is designed to use the LED luminescence to make a reasonable LED distance,  with the diffusion and the height of the light fixtures to achieve the ideal blend of light, so the reasonable distance between the LED SMD and the Polycarbonate or Acrylic LED Diffuser, so that it improves the brightness uniformity when it's lighting up.   Long life: It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.   Specifications:

Model

Power

Leds

Luminous Flux(lm)

Efficiency

(lm/w)

CRI

CCT

DLT7 -6060-30

30

2835

2700

85

>80

4000K-6000K

DLT7-6060-40

40

2835

3600

85

>80

 4000K-6000K
DLT7-1230-30   30 2835 2700 85  >80  4000K-6000K
DLT7-1230-40  40 2835 3600 8  >80  4000K-6000K
DLT7-1260-50  50 2835 4500 90  >80  4000K-6000K
DLT7-1260-60 60 2835 5400 90  >80  4000K-6000K
  Packing details:

Model

Dimension(L*W*H)(mm)

Packing size (mm)

Qty/ctn

 DLT7-6060-30

595*595*100

620*620*220

2

DLT7-6060-40

595*595*100

620*620*220

2

DLT7-1230-30 1195*295*100 1225*325*220 2
DLT71230-40 1195*295*100 1225*325*220 2
DLT7-1260-50 1195*595*100 1225*625*110 1
DLT7-1260-60 1195*595*100 1225*625*110 1

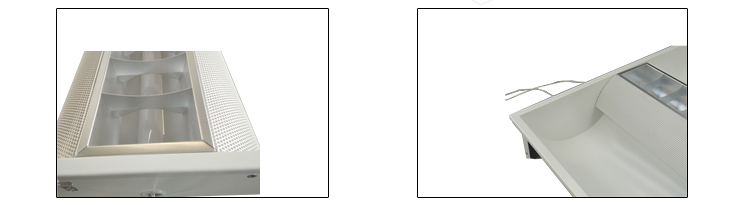

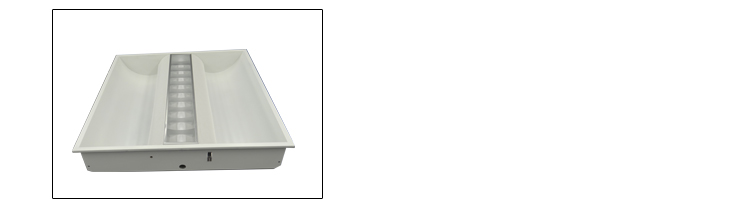

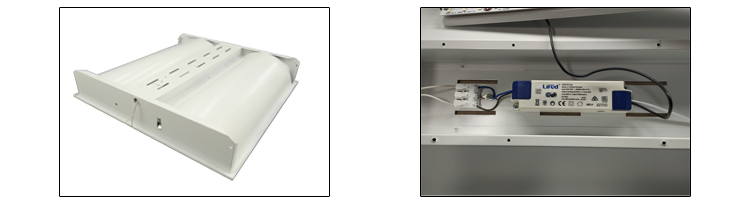

Product Details     50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL                  High transmittance of polycarbonate diffuser for bright and uniform lighting distribution.   50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL                       Indirect reflectors are precision formed and contoured to provide soft, indiect illumination.        50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL    Open rear cover design it is easy to install the wiring and maintenance                 It uses LIFUD it can gives the troffer long life      Company Information 50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOLIt has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection.Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit.   Why Choose Us 50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL  FAQ 50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL   Q1: Can I have a sample order for LED light? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.   Q2: What about the lead time? A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.   Q3: Do you have any MOQ limit for LED light order? A: 1pc for sample order is available.   Q4: How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.   Q5: How to place an order for LED light? A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.   Q6: Are you a factory? A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters. Q7: Do you offer guarantee for the products? A: Yes, we offer 3-5 years warranty to our products.     50w LED TROFFER SQUARE RECESSED SERIES FOR BANK SUPERMARKET HOTEL SCHOOL
